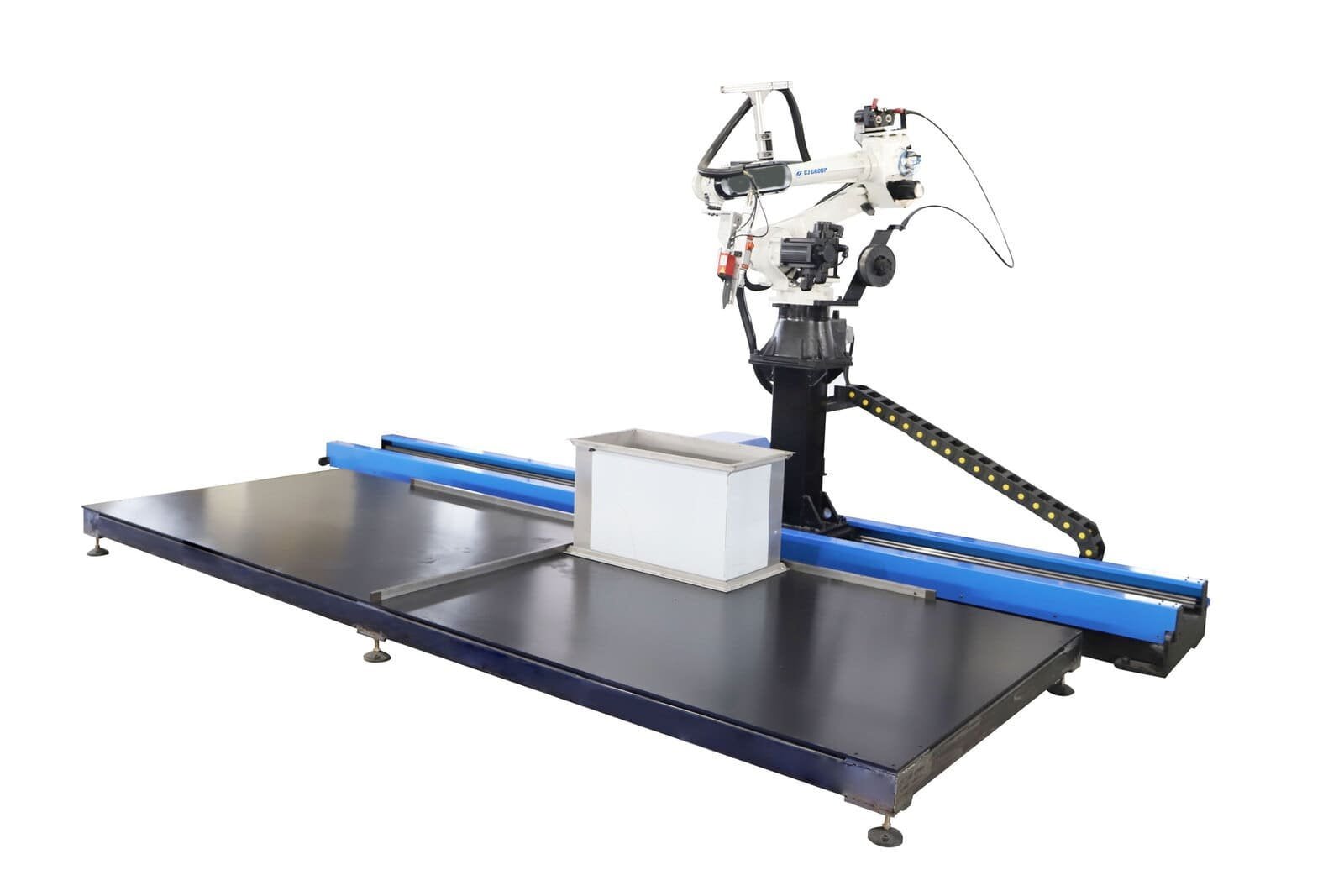

CJR Series: From Blind Repetition to Intelligent Adaptation
In the world of automated welding, consistency is king. But what happens when real-world parts aren’t perfectly consistent? The CJR Series Intelligent Robotic Welder is the definitive answer. By integrating cutting-edge, real-time visual seam tracking, the CJR series transcends the limitations of traditional “blind” robots. It doesn’t just follow a path; it sees, understands, and adapts to it, delivering flawless quality in the face of real-world manufacturing variability.
The Core Advantage: Real-Time Visual Seam Tracking
This is what separates the CJR series from the pack. A high-speed laser scanner or vision camera mounted near the welding torch acts as the robot’s “eyes,” providing a constant stream of data about the precise location and geometry of the weld seam. This enables abilities that were previously impossible:
- Adapt to Part & Fixture Variations: No more failed welds due to slight inconsistencies in part forming or placement. The CJR robot finds the actual seam and welds it, not just the programmed location.
- Compensate for Thermal Distortion in Real-Time: As heat from the arc causes the workpiece to expand or warp during welding, the vision system tracks the shifting seam, ensuring the torch stays perfectly aligned from start to finish.
- Weld Imperfect Gaps with Confidence: The system can identify changes in the root gap and, when paired with an adaptive welding process, can automatically adjust parameters (like travel speed or wire feed) to ensure a consistent, strong fill.
- Reduce Reliance on Expensive, High-Precision Fixturing: Since the robot can find the part, you can simplify your tooling and reduce costs, making automation accessible for a wider range of applications.
Key Features of the CJR Platform
- High-Performance 6-Axis Agility: Provides maximum flexibility to reach complex joints in any orientation.
- Robust & Reliable Design: Engineered for 24/7 operation in demanding industrial environments.
- Intuitive Programming & Control: User-friendly interface that simplifies the teaching of paths and the setup of tracking functions.
- Universal Process Compatibility: Easily integrates with MIG/MAG, TIG, and other arc welding power sources and torches.
Technical Specifications Overview (CJR Series)
| Model Series | CJR Series (Multiple models available) |
| Key Technology | Real-Time Laser or Camera-Based Visual Seam Tracking |
| Axes of Motion | 6 Axes |
| Typical Payload | 6kg – 20kg (To accommodate various torches and sensors) |
| Typical Reach | 1400mm – 2200mm (Varies by model) |
| Tracking Accuracy | Down to ±0.2mm or better |
Ideal for High-Stakes Industries
The intelligence of the CJR series makes it indispensable where quality and reliability are non-negotiable:
- Automotive Manufacturing: Chassis, frames, exhaust systems, seating components.
- Aerospace & Defense: Precision welding of structural components and assemblies.
- Heavy Machinery: Booms, chassis, and attachments for construction and agricultural equipment.
- General Fabrication: Any application with long seams, complex curves, or part-to-part variability.
Stop Programming Around Problems. Start Solving Them.
Eliminate scrap, reduce rework, and achieve a new level of quality assurance. The CJR Intelligent Robotic Welder doesn’t just automate a task; it masters it. Contact us to schedule a demo and see the future of automated welding.
