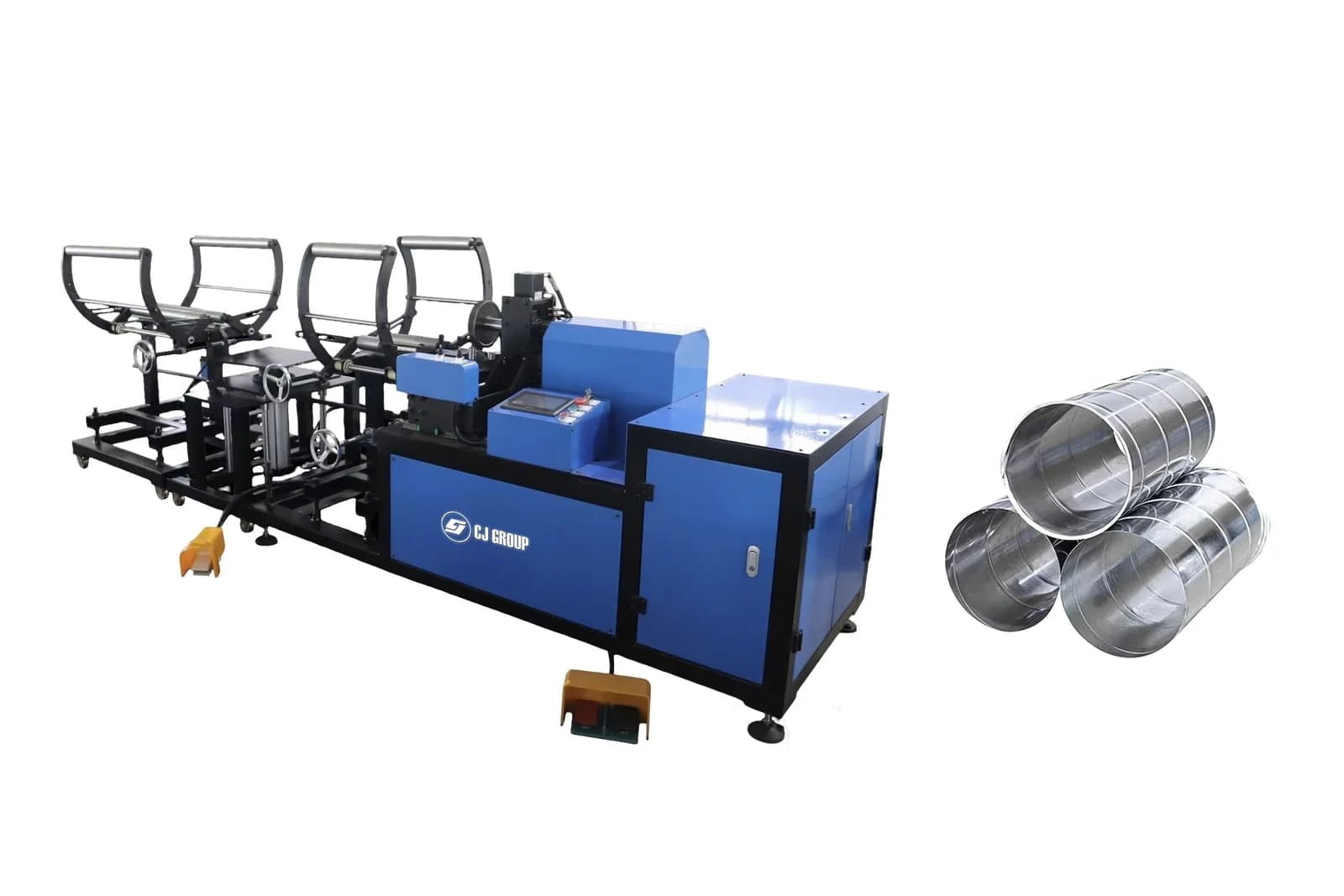

CJ-1600S: The Professional Solution for Spiral Duct Flanging
Spiral ducts are a cornerstone of modern HVAC systems, but creating a clean, consistent flange for connection has always been a challenge—until now. The CJ-1600S Automatic Spiral Duct Flanging Machine is a purpose-built solution designed to overcome the unique difficulties of flanging spiral-seam pipe, delivering perfect results with unmatched speed and ease.
Why is the CJ-1600S Essential for Spiral Duct Fabrication?
- Specialized Seam-Traversing Technology: The primary challenge of flanging spiral duct is the uneven surface created by the lockseam. The CJ-1600S features a specially designed forming head with high-strength, hardened steel rollers that intelligently adapt and glide over the seam, ensuring a smooth, continuous, and uniform flange profile from start to finish.
- Perfect 90-Degree Flanges for Leak-Proof Connections: This machine consistently produces a precise, crisp 90-degree flange, which is critical for a tight, leak-free seal when connecting with angle iron rings (companion flanges). This level of accuracy is nearly impossible to achieve quickly and repeatedly by hand.
- Drastic Improvement in Efficiency: Replace slow, labor-intensive, and noisy manual hammering with a fully automated process. An operator can position the duct, activate the machine, and have a perfectly flanged end in a matter of seconds. This dramatically increases workshop throughput and frees up skilled labor for other tasks.
- Robust Construction for Long-Term Reliability: Built on a heavy-duty, stable frame, the CJ-1600S is designed for continuous industrial use. Its powerful hydraulic or pneumatic system provides consistent forming pressure, ensuring reliable performance day in and day out.
Technical Specifications Overview
| Model | CJ-1600S |
| Primary Application | Flanging on Spiral Seam Ducts |
| Processing Diameter Range | Ø150mm – Ø1600mm (Customizable ranges available) |
| Applicable Material Thickness | 0.5mm – 1.5mm (Galvanized Steel) |
| Flange Height | Standard 10mm (Customizable) |
| Drive System | Hydraulic / Pneumatic |
Transform Your Duct Connection Process
The quality of your connections defines the quality of your entire HVAC installation. Inconsistent, hand-formed flanges lead to leaks, pressure loss, and costly callbacks. The CJ-1600S standardizes this critical process, guaranteeing that every spiral duct section leaving your shop is ready for a fast, secure, and professional on-site installation.
Stop fighting with the spiral seam and let the right tool do the work. The CJ-1600S is a fundamental investment for any serious spiral duct manufacturer, promising a rapid return through labor savings, improved quality, and increased production capacity.
